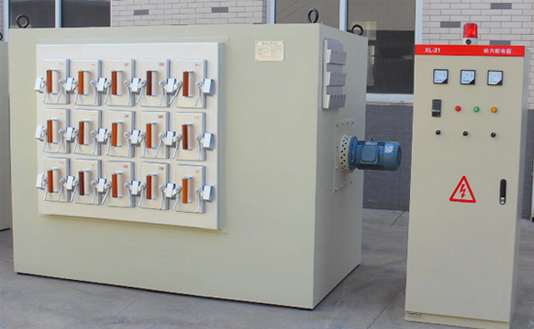

Spin-pack Preheating Oven SPO Series
A: Preheating Objects: Spin-pack of polyester filament yarn.

B: Preheating Objects: Spin-pack of PSF

C: Preheating Objects: Spin-pack or Spinning pump

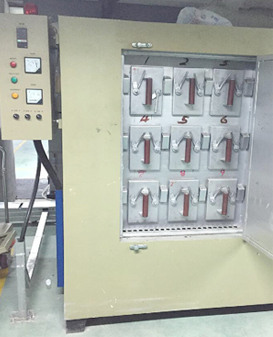

Drawer Type Spin-pack Preheating Oven DSPO Series
Preheating Objects: Spin-pack of polyester filament yarn
Principle:
Drawer-type components preheating oven for chemical fiber components in the preheating and insulation by electric heating. Flanged stainless steel electric heating elements installed inside the air duct, the heat issued by the heating element evenly work on components in workroom thought blower, so that the components are evenly heated. The oven adopts a set of fan circulation to make the inside temperature uniform.
Take device model DSPO-5-3 as sample for more details:
Preheating ability：
189 spin-pack(φ125×170mm) can be preheated at the same time in this device.
216 spin-pack(φ115×140mm) can be preheated at the same time in this device.
Material Description
Stainless steel surface pickling passivation treatment, carbon steel surface spraying twice anti-rust paint after manual derusting (derusting grade St2), coated around the mouth of high temperature silver paint, the rest of the surface spraying high temperature gray hammer paint twice, required paint layer uniform, in line with national C-class standards.
Electric Control System
According to the working principle of the drawer type preheating oven, using the Japanese "PXR" digital high-precision temperature controller automatically control equipment process temperature. When over-temperature, cut off the main heating power, and sound and light alarm, to ensure the normal operation of equipment and fault self-protection. The instrument has PID manual and can auto-tuning to set the best parameters, input excellent control signal to drive the heating control device (solid state relay), heating control device with automatic temperature cooling and fault self-diagnosis protection to ensure temperature control precision. As the heating mode of the device is electric heating through the air circulation method to the temperature uniform heating to the workroom, so the design of the fan and heating element interlock protection, the heater can work only the fan in the normal operation.

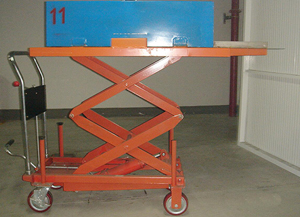

Auxiliary device- Spin-pack insulation handcart SIH Series
Take device model SIH-5-3 as example for certain details:
Stainless steel surface pickling passivation treatment, carbon steel surface spraying twice anti-rust paint after manual derusting (derusting grade St2), coated around the mouth of high temperature silver paint, the rest of the surface spraying high temperature gray hammer paint twice, required paint layer uniform, in line with national C-class standards.
Take device model SIH-5-3 as example for certain details:
§Preheating ability:
7 spin-pack(φ125×170mm) can be preheated at the same time in this device.
8 spin-pack(φ115×140mm) can be preheated at the same time in this device.
§Structural features:

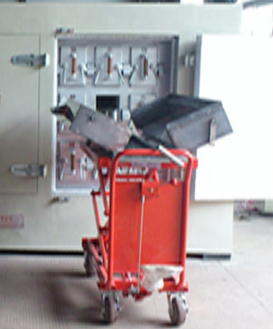

The Spin-pack insulation handcart is supporting the drawer type spin-pack preheating oven, pick and place, transport the components after preheating. Lifting car consist of the frame, platform, four-bar linkage mechanism, hydraulic pumps, insulation box, wheels and other components.
The frame is installed on a totally enclosed polyurethane wheel, and the wheel is composed of two directional wheels and two universal wheels which is equipped with a brake device. Platform from the jack through the hinged four linkage mechanism to lift. The platform has a insulation box, the inner shell of the box and the outer frame support a good thermal insulation performance, the insulation box is equipped with rails, and orbit docking in drawer-type components preheat oven , easy to remove the tray of the components.
§Technology performance:
1、Lift car loading weigh：350kg
2、Lifting height: maximum 1400mm
minimum: 470mm
Net. rise: 1200 mm
3、Lifting platform length：840 mm
lifting platform width：280mm
§Performance Evaluation:
1. Insulation performance : remove 8 components from the preheating oven around 320 ℃, put into the insulation box for 20 minutes, with the point-temperature measure box surface temperature, compared with the ambient temperature, not more than 15 ℃.
2. Lifting sensitivity: lift car can freely lift, and with the drawer accurate and flexible docking.
3. Wheels with anti-winding rounds.
4. All steel are national standard.
5. Painting standards: in line with C-class standards.
6. All steel with manual derusting, derusting grade St2.
Other Device

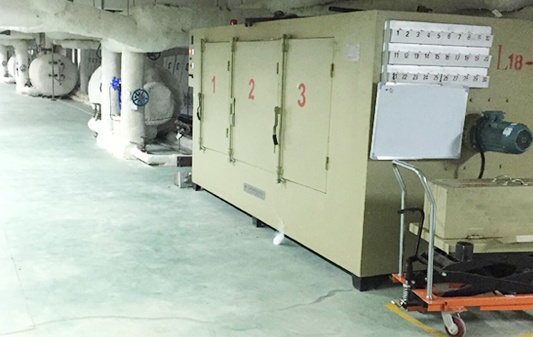

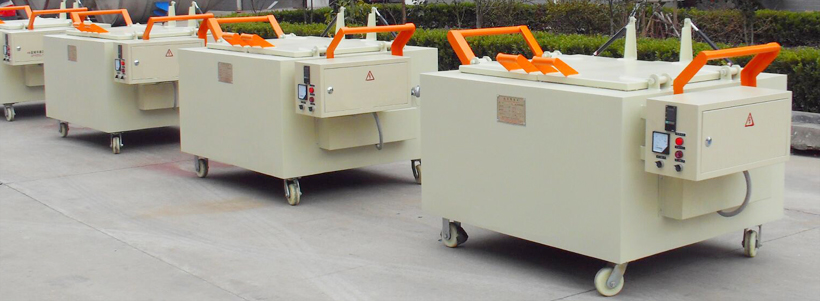

3. Horizontal Spin-pack Preheating Oven HSPO Series
Preheating Objects: Spin-pack of polyester filament yarn



Principle :

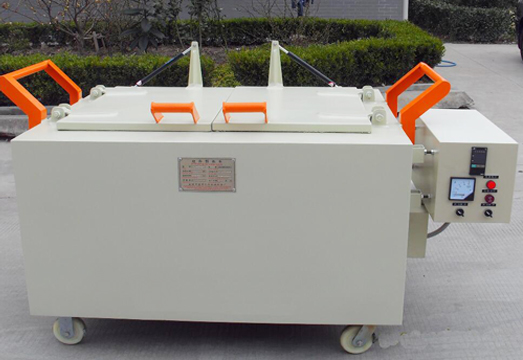

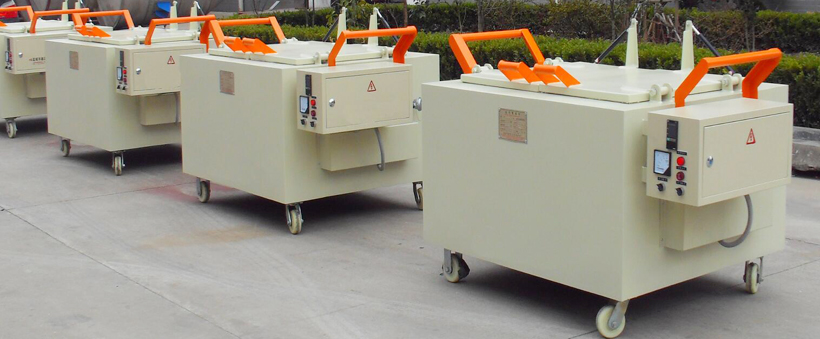

Horizontal Preheating Oven with Two-door, upward mouth, easy to pick and place components. Oven with shelf preheating components, stainless steel electric heating elements installed in the oven, through the fan, the heat generated by the heating element even work on interior components (heating element can be a single replacement). Hydraulic support bar to open the door to reduce the labor intensity of the operator. When the door is opened, the device automatically cut off the heating power, to ensure safe operation. The oven door and oven mouth are double sealed packing structure.
Take device modelHSPO-3-2 as sample for certain details:
§Preheating ability:
72spin-pack(φ120×136mm) can be preheated at the same time in this device.
§Electric Control System
According to the working principle and requirements of the preheating oven, using the Japanese "PXR" digital high-precision temperature controller automatically control temperature. When over-temperature, cut off the main heating power, and alarm, to ensure the normal operation of equipment and fault self-protection. The instrument has PID manual and can auto-tuning to set the best parameters, input excellent control signal to drive the heating control device (solid state relay), heating control device with automatic temperature cooling and fault self-diagnosis protection to ensure temperature control precision. As the heating mode of the device is electric heating through the air circulation method to the temperature uniform heating to the workroom, so the design of a series of electric interlock device, the heater can work only oven lid is closed and the fan in the normal operation.

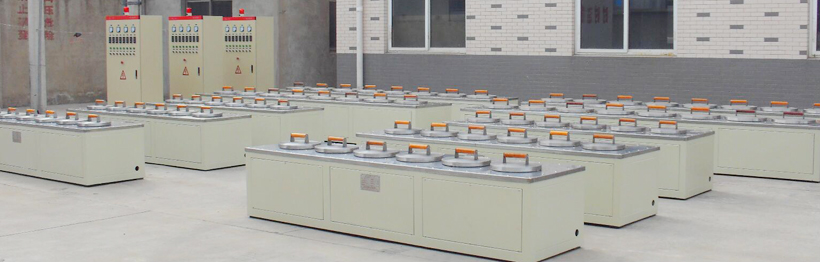

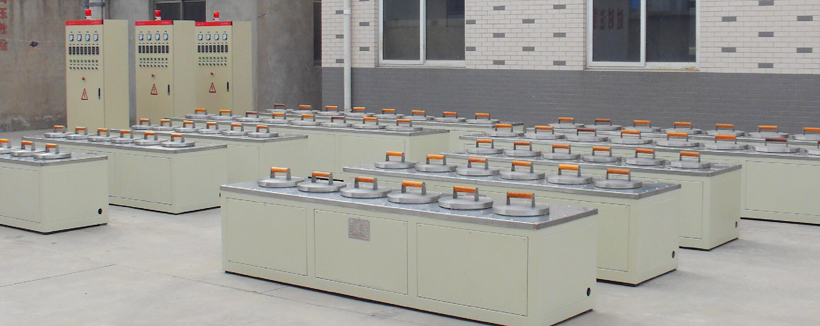

4. Pit Spin-pack Preheating Oven PSPO Series
Preheating Objects: Spin-pack of PSF

§Introduction
The equipment frame is composed of steel, welded steel pipe production. Between the furnace and the external frame filled with high-quality aluminum silicate insulation. Furnace is made of stainless steel, each furnace has three high-frequency porcelain electric heating tape, electric heating wire material is Cr20Ni80, heater life of not less than three years.
The pit preheating furnace is composed of 6 furnaces, each furnace can work alone. To ensure the furnace lid temperature is not leaked, the use of double seal structure. Furnace, furnace cover and furnace panel materials are SUS304 stainless steel plate. The wall thickness of 5 mm, the cover thickness of 1.5 mm, the inner surface of a thickness of 1.5 mm, 1.5 mm thick outside.
§Configuration
1. Device Model：PSPO-6
2. Preheating ability:
6 spin-pack(φ310×240mm) can be preheated at the same time in this device.
§Technical information
Working Temperature: 330℃, Designed Temperature:400℃
Temperature control precision:±1℃
§ Electrical control instructions
（1）The PXW series high precision digital temperature control instrument automatic control instrument with self-tuning PID parameters set the optimal function, driving signal heater control device control input (SSR), each instrument control 1 furnace.
（2） Over temperature alarm, and automatically cut off heating power.
（3） Each control cabinet controls 1 furnace bodies.

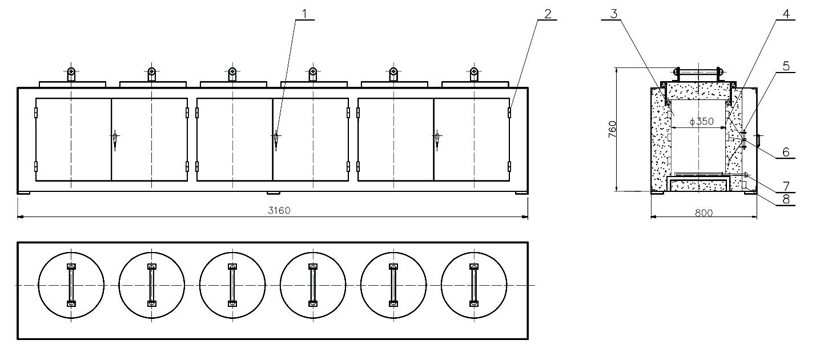

§ Outline of device
